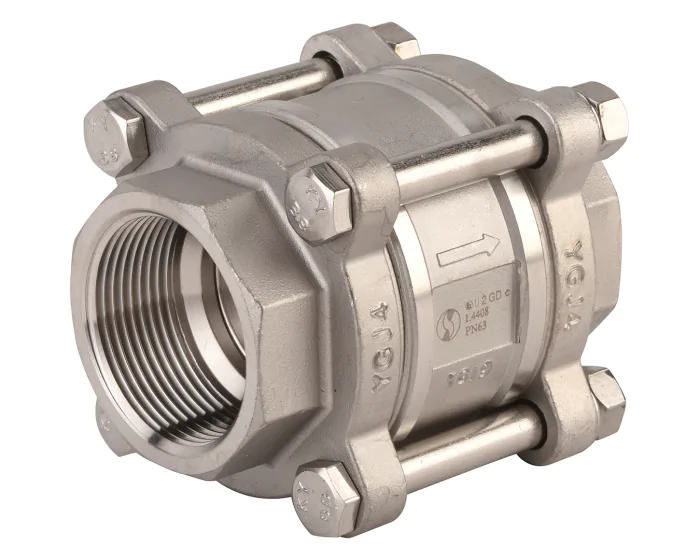

Stainless steel CF8M spring check valve 380 3 piece body BSP 1/4''
€22.81(excl. btw)
The 380 series is a 3-piece body spring check valve, in stainless steel, with BSP threaded ends, metal-metal tightness and PTFE gaskets. It is ACS certified for drinking water and complies with CE 1935 for the food idnustry.
Spring - all positions The spring check valve, spring-assisted check valve or spring-loaded check valve all positions is one of the devices used in plumbing to control backflows of fluids. « All positions » means that the valve may be mounted in any position, as long as the flow follows the arrow seen on the valve body. This type of check valve ensures a great metal/metal tightness at all times. The spring check valve is especially used in the chemical, petrochemical and pharmaceutical industries, as well as in compressed air installations and drinking water systems. Syveco offers an ACS certified spring check valve. This device comes in four different models, with distinct connectors: BSP or NPT threads, or SW or BW connections. This is a three-piece spring valve: the body and disc are made of stainless steel, while the seat is in PTFE. With sizes ranging from ¼'' to 4'', this spring check valve all positions allows -20 °C to +200 °C in temperature, and a maximum pressure of 63 bar.
Specification
Value
DN inches NPS
1/4''
Option certificate 3.1
Yes
Mounting direction
All positions
Construction standard
EN 12516-1 - ASME B16.34
CE risk category
III Module H
Thread standard
ISO 228-1
Tightness test standard
API 598. table 6
Closure member material
Stainless steel AISI 316
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
ATEX compatible
Yes
DN
DN8 - 1/4''
Face to Face (mm)
60.0
Sealing
Metal / Metal
Fluid
Acids
Gasket
PTFE
Kv (m³/h)
1.2
Body material
Stainless steel CF8M (1.4408)
PS (bar)
63
Connections
BSP FF
Seats
Stainless steel AISI 316
TS max (°C)
200
TS min (°C)
-20
ATEX zone
1 & 21. 2 & 22
Drinking water compatibility
Yes
CE
Yes
Obturator type
Spring
If you have any questions about this product, please feel free to contact us.
